Introduction: The Shop Floor Moment
You’re on the line at 6:40 a.m., coffee in hand, watching units tick by and alarms blink red. The next station handles a cylindrical battery, and the operator leans in to rethread a jammed strip. Output says “good,” but the OEE tells a different story—67% on a line that should be cruising above 85%. Scrap climbs when the shift changes, and SOH variance shows up downstream in pack assembly tests. Is the bottleneck the cell design, the fixtures, or the way the data moves between stations?
Here’s the twist: the pain rarely comes from one point. It’s the small drifts that stack—tension here, a loose torque there, a missed parameter in the historian. Then the day ends with acceptable yield, but a stubborn defect mode still lurks, waiting for DC fast charging to expose it in the field. So, what’s the smarter way to compare options without betting the plant on a hunch? Let’s break it down—and keep it real (no buzzword soup). Onward to the real factors that decide scale and stability.
Legacy Lines vs. Reality: Where the Battery Cylinder Trips Up
Where do legacy setups fall short?
In conventional rigs, the battery cylinder often gets blamed for variability that the process creates. Legacy winding uses fixed-speed profiles that don’t adapt to micro-changes in foil tension. That tightens the jelly roll one minute and loosens it the next. Electrolyte wetting then behaves like a coin toss. Laser tab welding drifts because optics aren’t cleaned on a set cadence, and the weld map never syncs back to quality rules. SPC charts get printed, walked to a board, and forgotten—funny how that works, right? The result: cells pass today, only to show impedance creep after a few hundred cycles.
Look, it’s simpler than you think: older methods assume stability, but the cell doesn’t. Tiny changes in temperature, humidity, and tool wear shift the stack. You see it in uneven tab resistance, misaligned cans, or seal integrity that looks fine until a pressure test fails. The hidden pain points? No closed-loop tuning at the station level, no direct link between process signatures and defect codes, and no way to trace back a bad lot except by guesswork. That’s why inspection catches issues but doesn’t prevent them. Without synchronized parameters and real-time correction, even the best hardware will underdeliver.
New Principles, Real Gains: A Forward Look at Battery Cylinder Production
What’s Next

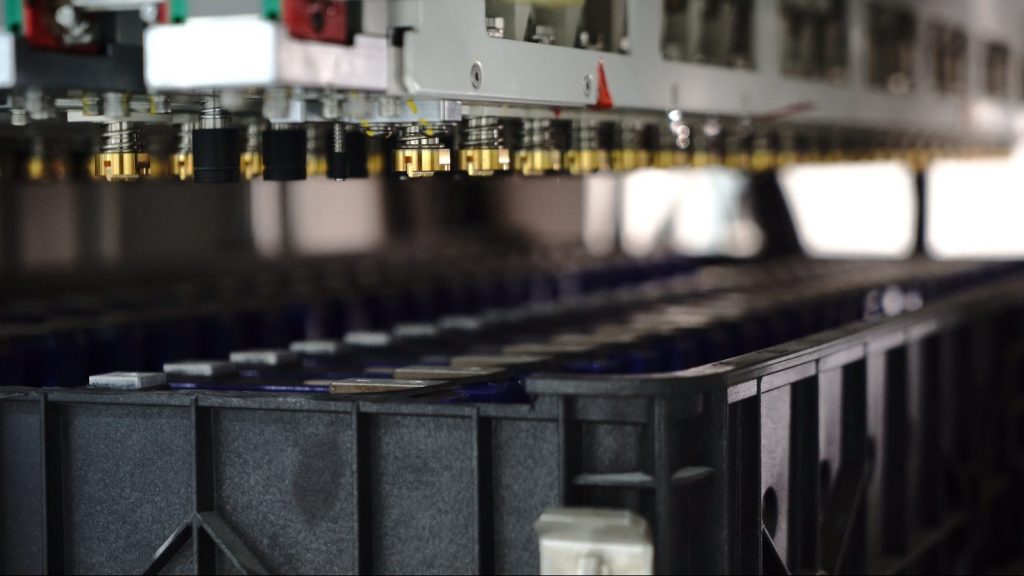

The new playbook leans on physics-aware control plus software that learns. Start with adaptive winding: torque and speed adjust in milliseconds based on live strain readings. That keeps the jelly roll uniform and improves electrolyte wetting later. Add weld quality models that watch plume intensity and reflectivity; they tune energy on the fly. Then tie it together with a station-level controller that talks to edge computing nodes. Now, process fingerprints stream into the MES and feed a digital twin—no more guessing. The same logic applies to formation cycling; profiles shift by cell response, not by a static recipe.
Comparing this to traditional lines shows two clear wins. First, failure modes shrink early. AI vision inspection flags burrs, misaligned tabs, and micro-scratches, not just obvious defects. Second, traceability becomes action, not archive. If a torque trend deviates, the system pauses, corrects, and alerts with context. One more piece: synchronized power converters stabilize supply to sensitive stations, so thermal drift doesn’t sneak in. The battery cylinder benefits because parameters stay tight across shifts—and across weather swings.
How does this show up in outcomes? Faster ramp to rate, lower variance at high C-rate tests, and less rework in pack topology assembly. You also get cleaner data for cell balancing rules. And—this matters—operators trust the system because it explains decisions in plain terms. That reduces firefighting. It makes room for continuous improvement instead of daily triage. Unexpected bonus: better maintenance timing, since vibration and current signatures predict tool wear before yield dips.
Before we close, here are three metrics to evaluate solutions, so you’re not flying by feel: 1) Parameter stability index: variance of tension, weld energy, and slurry temperature versus target across lots. 2) Defect detect-to-correct latency: time from anomaly detection to automated adjustment at the station. 3) Closed-loop yield lift: net gain in first-pass yield attributable to control actions, validated in the MES over a rolling 30-day window—simple to measure, hard to fake. With these, you can compare options fairly and avoid shiny-demo bias—funny how that works, right? For a grounded view of integrated manufacturing, see LEAD.
